VMARC-Q9075

SMARC Form Factor, 200 TOPS AI SoM

VMARC-Q9075

VMARC-Q9075

  • Features
  • Product Details

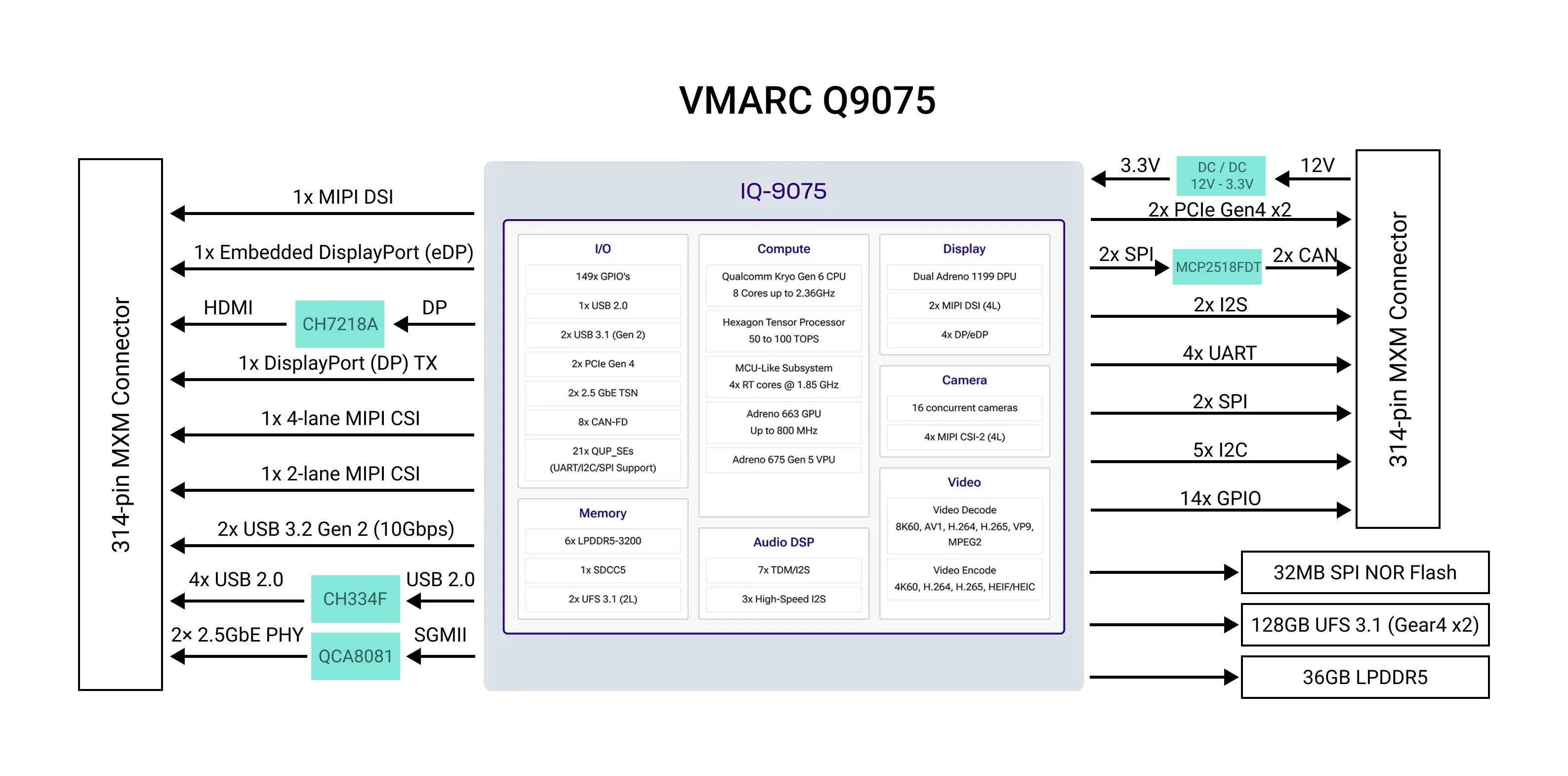

  • Block Diagram

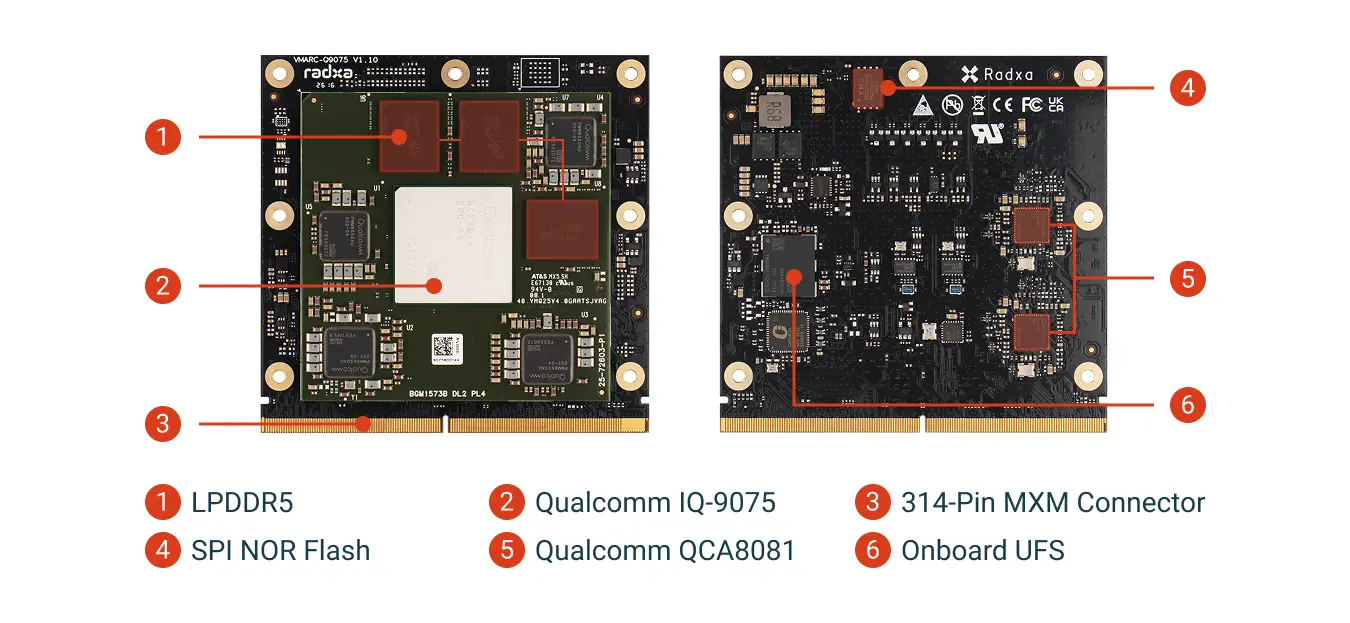

  • Interfaces
  • Hardware Spec
  • Documentations
  • Accessories

  • IQ-9075

  • Adreno 663

  • 200 TOPS

  • PCIe Gen4

  • 82 x 80 mm

  • Ethernet

  • Display 4K

  • 36GB LPDDR5

Powered by Qualcomm Dragonwing IQ-9075

Octa-core Kryo Gen6 CPU up to 2.36 GHz, Adreno 663 GPU, and dual Hexagon NPUs delivering up to 200 TOPS — combining CPU, GPU, and NPU acceleration for edge AI.

200 TOPS

2.55GHzAdreno 663Dual Hexagon

IQ9 Series Platform

  1. Kryo Gen 6 CPU
  2. Adreno 663 GPU
  3. Hexagon Tensor Processor with vector and matrix accelerators (Al/NPU)
  4. LPDDR5 Memory With ECC
  5. Qualcomm® Spectra™ 690 ISP, CV Processors, multi-camera HDR
  6. 3x Audio DSPs with Al accelerator
  1. Dual Adreno 1199 Display Processing Unit (DPU)
  2. IO USB3.x, PCle Gen 4 Ethernet with TSN support UART, I2S, I2C, SPI
  1. Adreno Video Processing Unit (VPU) 675 Gen 5
  2. MCU-like subsystem with dedicated real-time cores, high-speed IOs and RTOS

8K Video Engine — See More, Process Faster

Multi-Stream UHD, Real-Time Processing

Adreno 663

Support:

Dual Hexagon
  • AV1 / HEVC / H.265 / H.264 / VP9 / MPEG-2 video decoder up to 1x 8Kp60, 4x 4Kp60 or 32x 1080p30
  • H.264 / H.265 / HEIF / HEIC video encoder up to 2x 4Kp60 or 16x 1080p30
  • Concurrent 2x 4Kp60 encode and 2x 4Kp60 decode

Comprehensive and Rich AI Ecosystem

Support Yocto or Ubuntu with TensorFlow, PyTorch, ONNX, and more.
Run GPT, LLaMA, and Stable Diffusion locally — secure and low-latency.

Features the Hexagon Tensor Processor (HTP)
with quad HVX and dual HMX

Supports Yocto or Ubuntu for easy deployment of AI applications

icon

  1. Extensive Compatibility

    Compatible with major frameworks: TensorFlow, PyTorch, ONNX, Paddle, Caffe, DarkNet, etc.

    icon

  2. Ideal For Local AI APPs

    Run popular open-source apps with ease

    icon

Storage That Keeps Up

Workstation-Class Memory in a Module Footprint.

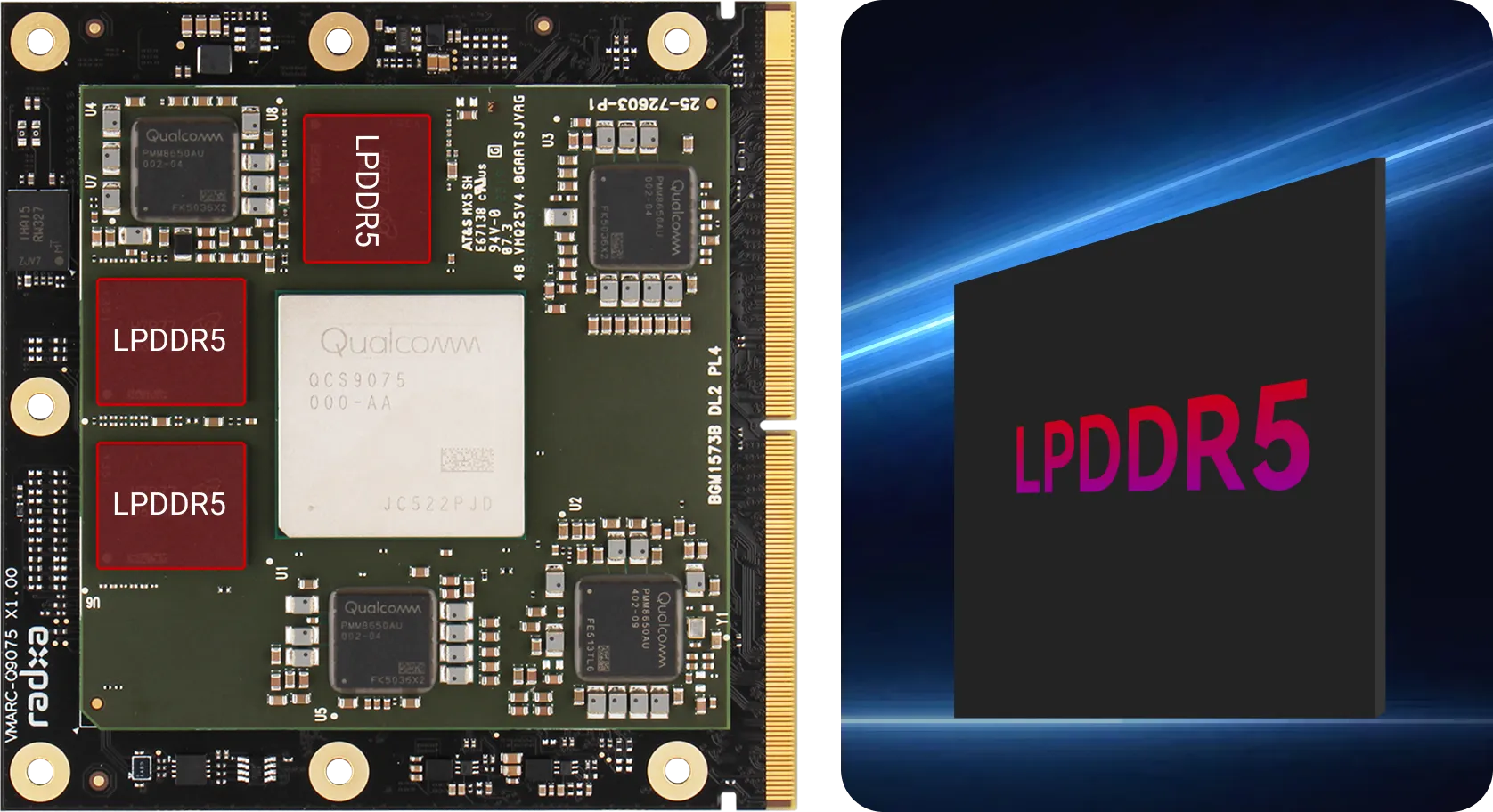

Storage overview

  1. 36GB 96-bit LPDDR5

    Up to 6400 MT/s, with ECC

  2. 128 GB UFS 3.1

    Onboard For High-Speed Storage

  3. PCIe NVMe SSD Support

    Expandable High-Speed Storage

  4. 32 MB SPI Flash

    For Boot and Firmware

Hardware-Grade Security Protection

Hardware RNG + ICE protection

  1. Hardware ECC/RSA encryption
  2. 5th-gen CE5 Engine
  3. FIPS/CAVP Certified

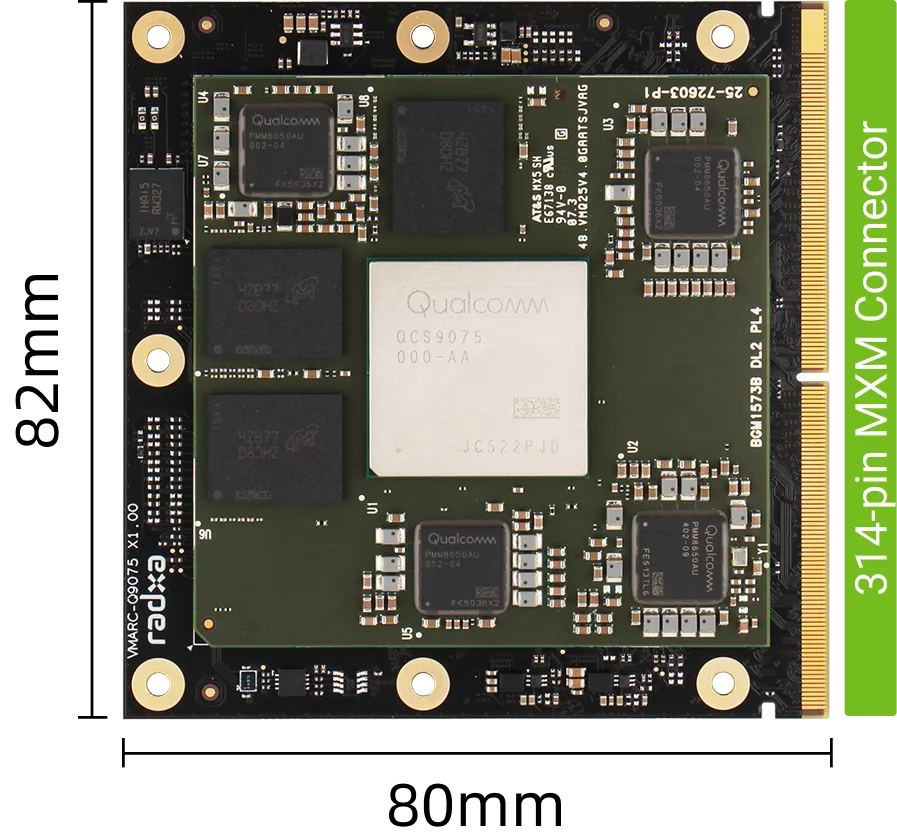

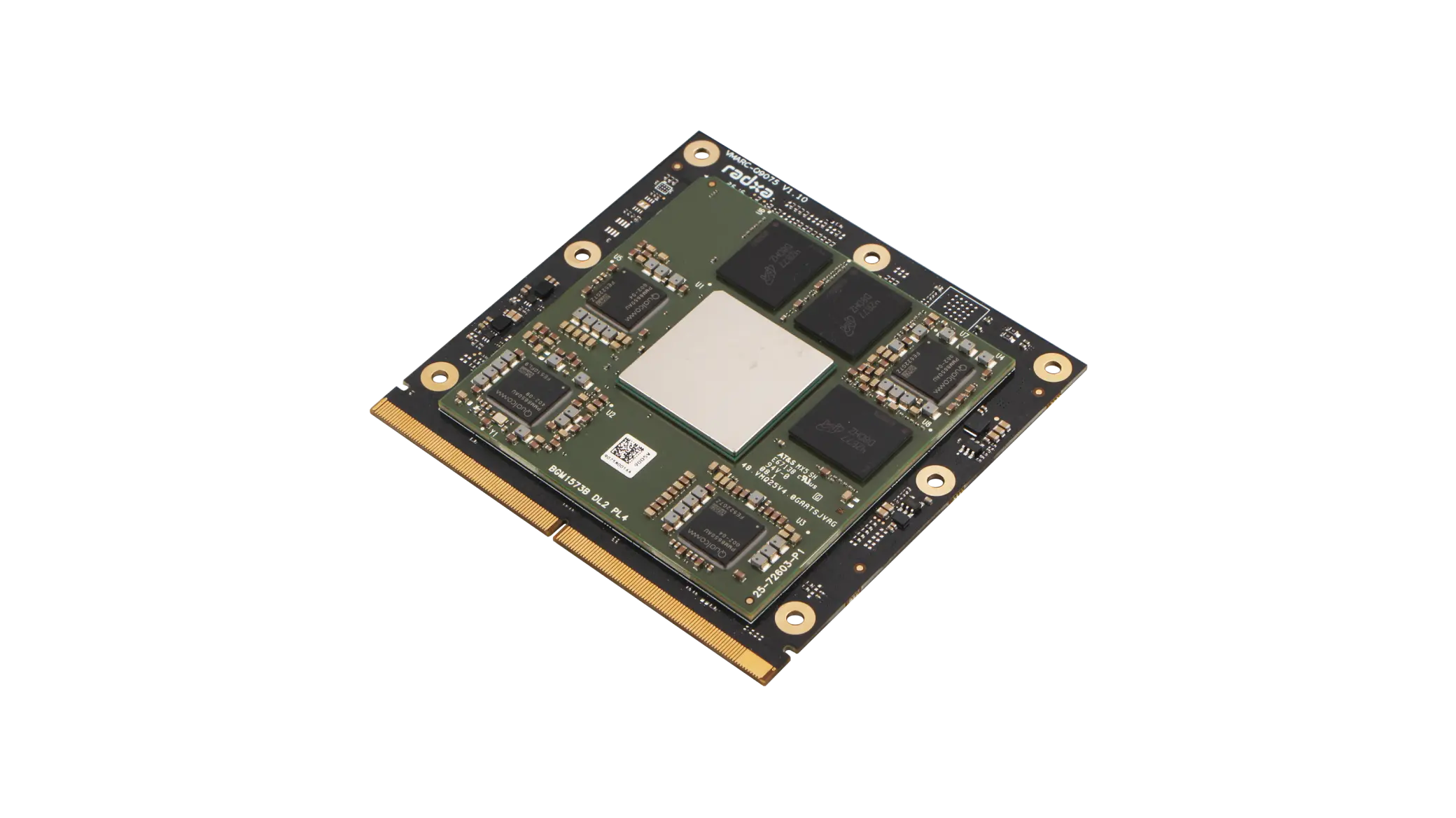

SMARC Form Factor, Rich I/O Expansion

Compact 82 mm × 80 mm module design with a 314-pin MXM 3.0 connector, enabling integration of display,
camera, networking, USB, PCIe, and industrial I/O interfaces.

Size

  1. High-Speed I/O

    PCIe Gen4, USB 3.2 Gen2, 2.5GbE

  2. Multimedia

    MIPI DSI, eDP, DP, CSI

  3. Industrial I/O

    CAN, UART, SPI, I2C, GPIO

Qualcomm Platform, Ready for Production

Enterprise-grade SDKs, long-term BSP maintenance, and AI deployment tools built for real products.

Qualcomm AI Hub visual

Qualcomm AI Hub

Models, Apps, and Workbench for model optimization, validation, and on-device deployment.

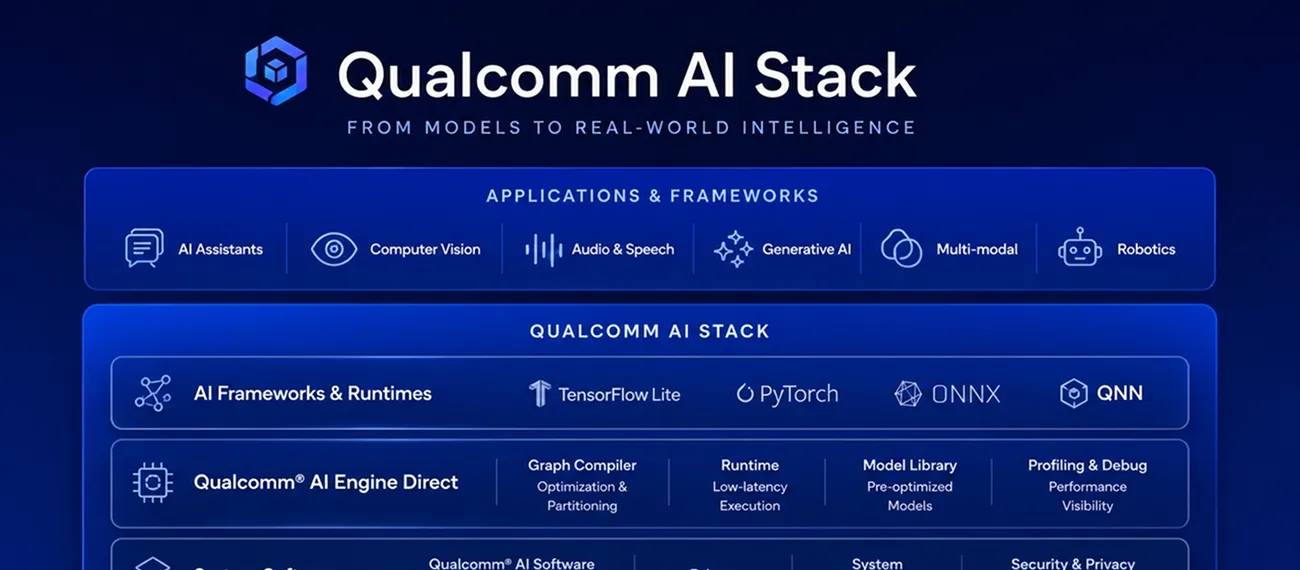

Qualcomm AI Stack visual

Qualcomm AI Stack

On-device AI software stack and runtime foundation, helping developers unlock CPU, GPU, and NPU capabilities.

Applications & Use Cases

VMARC-Q9075 paired with the Radxa C201 VMARC IO Board enables rapid validation and prototype development

Applications & Use Cases

Comprehensive expansion capabilities

  • Audio

    I2S (muxed with PCM/TDM pins)

  • Display

    1x MIPI DSI

    1x Embedded DisplayPort (eDP)

    1x HDMI TX (DP to HDMI)

    1x DisplayPort (DP) TX

  • Camera

    1x MIPI CSI 4-lane

    1x MIPI CSI 2-lane

  • Storage

    1x Onboard 32MB SPI Flash

    1x Onboard 128GB UFS 3.1 (Gear4 x2)

    NVMe SSD Support via PCIe

  • USB

    2x USB 3.2 Gen 2 (10Gbps)

    4x USB 2.0

  • Ethernet

    2× 2.5GbE PHY

  • Connectivity

    2x PCIe Gen4 x2

    2x CAN

    2x I2S

    4x UART

    2x SPI

    5x I2C

Comprehensive Technical Documentation and
Active Community

  • Comprehensive Technical Documentation and Active Community!

    Comprehensive Technical Documentation and Active Community !

    Radxa provides comprehensive technical documentation, empowering users to fully utilize their products. At the same time, they actively maintain an engaged community, fostering communication and collaboration among users.
