Heatsink 4025A

Specialized for Radxa ROCK 5B/5B+/5T

Buy Now
Heatsink 4025A

Radxa Heatsink 4025A

Buy

Heatsink Specialized for Radxa
ROCK 5B / 5B+ / 5T

The aluminum profile combined with tower-style three-dimensional fins significantly increases the heat
dissipation area and improves airflow efficiency

Heatsink 4025A

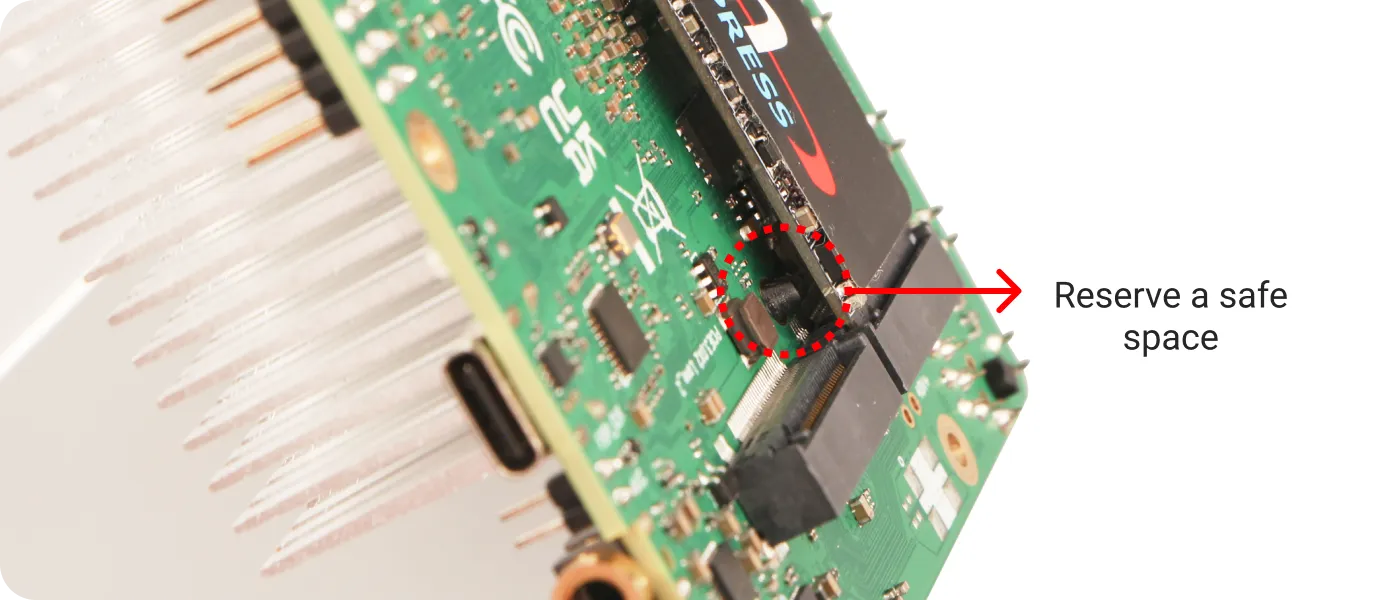

Low-Profile Spring Fastener

Ensures proper clearance to effectively resolve interference between the heatsink and NVMe SSDs

Heatsink 4025A

Radxa 25W PoE+ Module 5514

The Radxa ROCK 5T supports simultaneous heatsink and PoE+ integration, delivering power and data
through a single cable to streamline wiring

Heatsink 4025A

Heatsink 4025A

Heatsink Specialized for Radxa ROCK 5B / 5B+ / 5T

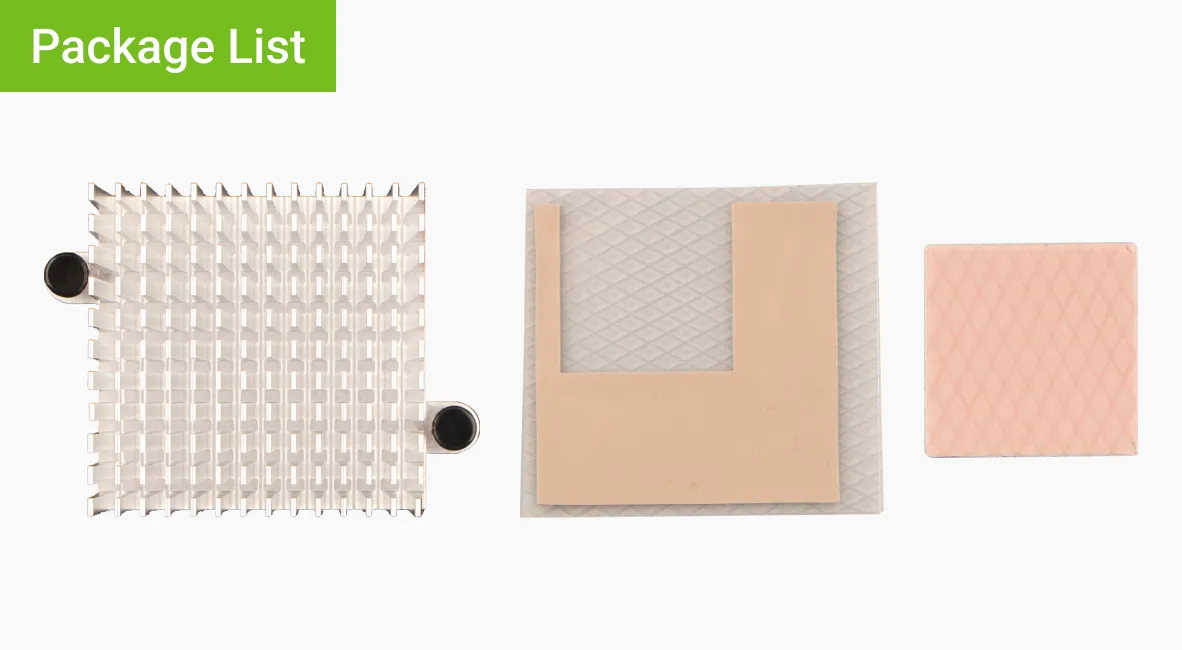

  • Package List

    • ・ 1x Heatsink
    • ・ 1x Thermal pad (22 × 22 × 0.8 mm)
    • ・ 1x Thermal pad (40 × 40 × 1.0 mm)
    Package List

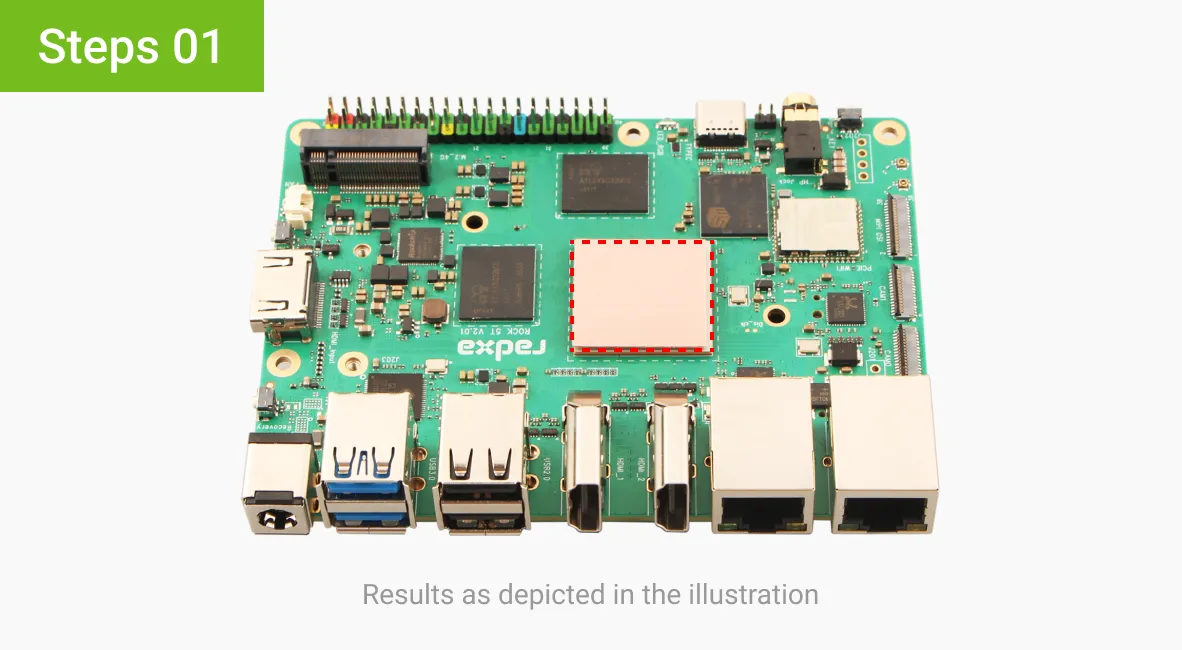

  • Attach the 22 × 22 × 0.8 mm thermal pad to the SoC on the board

    Steps 1

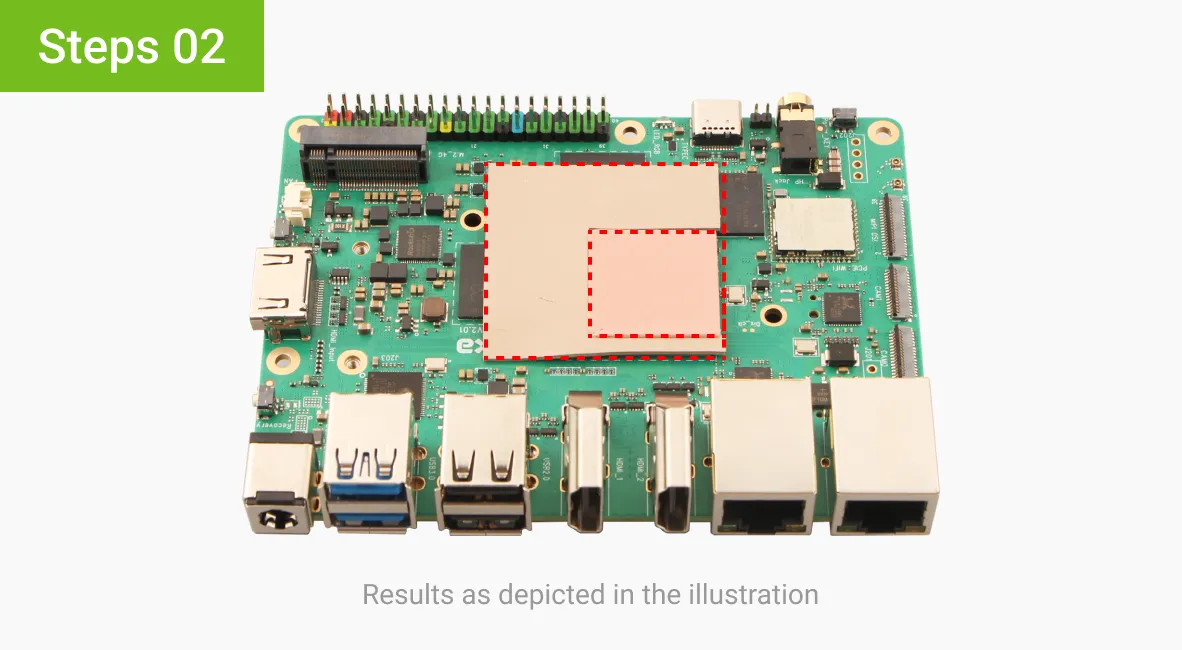

  • Place the 40 × 40 × 1.0 mm thermal pad near the SoC for insulation and additional heat dissipation

    Steps 2

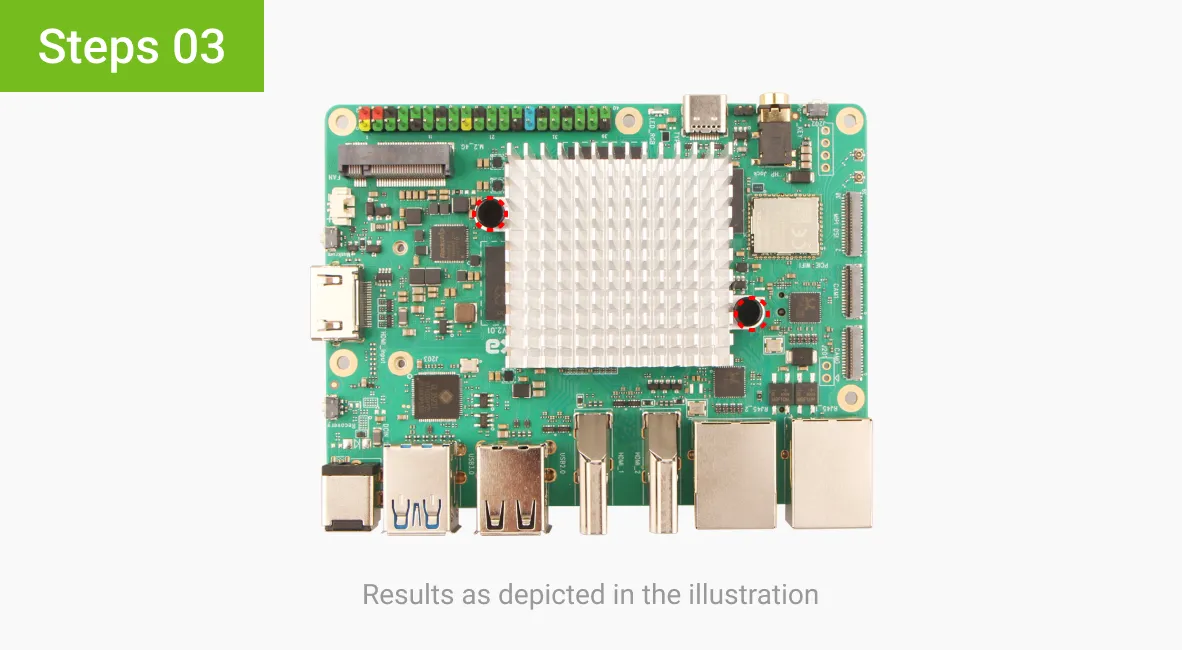

  • Align the heatsink with the mounting holes and press the plastic pins to secure it

    Steps 3

Heatsink 4025A Works with
